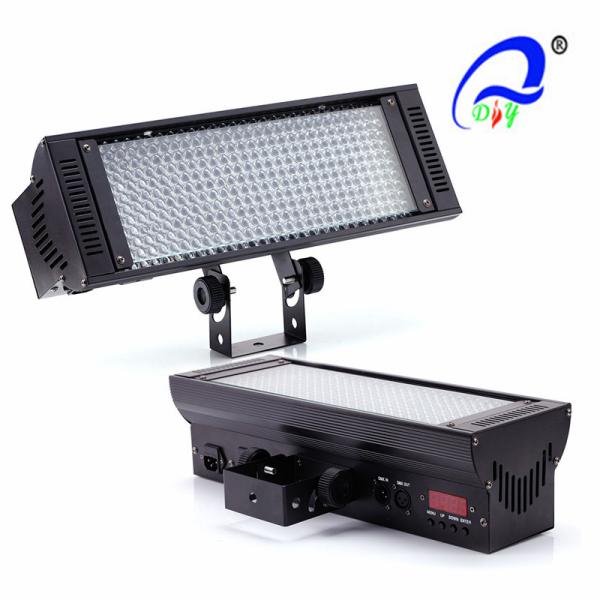

198pcs 10mm RGB LED Strobe Ligh,Led DMX light,disco strobe light

Parameters

Voltage: AC110V 60 Hz
Current: 2A
Power: 20W
led quantity: 198pcs high brightness lamps with 10 mm
Control: 4 DMX512 control channels
Operating mode: dmx512 / master / slave / stand-alone, strobe, change color
5,52x23x21 (1pcs / CTN)
6. packin size: 72x55x45 cm (6pcs / CTN)

2, DMX512 control channels:
Channel 1 dimming / Strobe
Channel 2, red
Channel 3 Green
Channel 4, blue

3, Function of choice for stand-alone mode
DIP 1.2, 3 / ON: the red light;
DIP 4.5, 6 / ON: the green light;
DIP 7.8 / ON: light blue;
DIP 1.9 / ON: RGB high brightness LED;
DIP 7.8, 9 / ON: RGB color Hopping
DIP 1.9 / ON: RGB color Hopping fast and slow

4, Master / Slave
To set a master in a control channel, stand-alone with the master (the above dive mode in stand-alone mode)
All other set to be a slave, to all DIP 1/10 and on / on.
Attention: a channel can only set a master.

Holding Eight Years of Experience
Located in the Tangge and Technology Park in Guangzhou and near the booming Baiyun International Airport, Guangzhou Xinyu Stage Lighting Factory was established in 2008 and is a stage lighting enterprise that integrates R&D, production, marketing and after-sales under one roof. Our product range includes beam moving heads, LED lights, outdoor lights, laser lights and light control systems.

Undergoing Continuous and Steady Developments
Under the targets of "create the international well-known brand" and "build up a respected enterprise", we highly raise quality and service flag, expand innovation and promote "Xinyu" brand image quickly. Our company is developing continuously and steadily.

Recipient of Various Awards and Quality Certificates
For your assurance, we have passed ISO 9001:2000 requirements in 2010. Because of our hard work, we have become a member of world-famous brand councils, Chinese Show Technology Association, and have got several accolades such as "China's AAA Credit Enterprise", and "the most trusted consumer brand" in August 2011. More than 50 kinds of our products have got CE approval.

Work with Us Today
We have several branches across China. Our goods are popular in Europe, the US, Southeast Asia, Russia, Brazil and other areas. Contact us with any inquiries you may have.
